Multi-Sensor Tracking
Traditionally, four detectors manage the four arms of a signalized intersection individually and independently, without exchanging information with one another. This can result in blind spots due to occlusion, and the inner part of the intersection is often challenging to monitor.
Super Resolution AI Tracking—Seamless Tracking at Intersections revolutionizes traffic management by fusing up to 4 sensors and combining their field of view. The data of all sensors is processed into one consolidated object list in real-time.
The communication among the sensors enables Seamless Tracking of all traffic participants throughout the entire intersection, including the inner part.
Super Resolution AI Tracking means
- Combining super resolution for radar detection
- With AI for tracking and perception
- On powerful new processors
Seamless Tracking at intersections means
- Precise time synchronization of all sensors
- Combining the data from multiple radar sensors on raw data level
- Applying Super Resolution AI Tracking on that combined data
Multi-Sensor Tracking
With our patented multi-sensor tracking technology, all approaches and the inner intersection area are covered by overlapping fields of view of multiple sensors. Any object is detected at a 200m (656ft) distance and will be tracked seamlessly. This leads to one single object list available in real-time for Automated Vehicles (AV).
The Seamless Tracking through multi-sensor fusion is patented by smartmicro.
- Increased system performance
- Higher detection & classification accuracy
- Increased safety for all road users
- Covering the intersection area without blind spots
- The inner part is fully covered, allowing turning movement counts
Player not visible? Open the video directly on YouTube (here).
Single-Sensor Tracking
One sensor enables multi-lane stop bar and advanced detection for up to 200m (656ft) range. The sensors reliably detect both stopped and moving objects, however, occlusion may happen.
- Tracking uses data from only one sensor
- Detection and tracking software run on sensor
- Application is limited to the one approach
Multi-Sensor Tracking

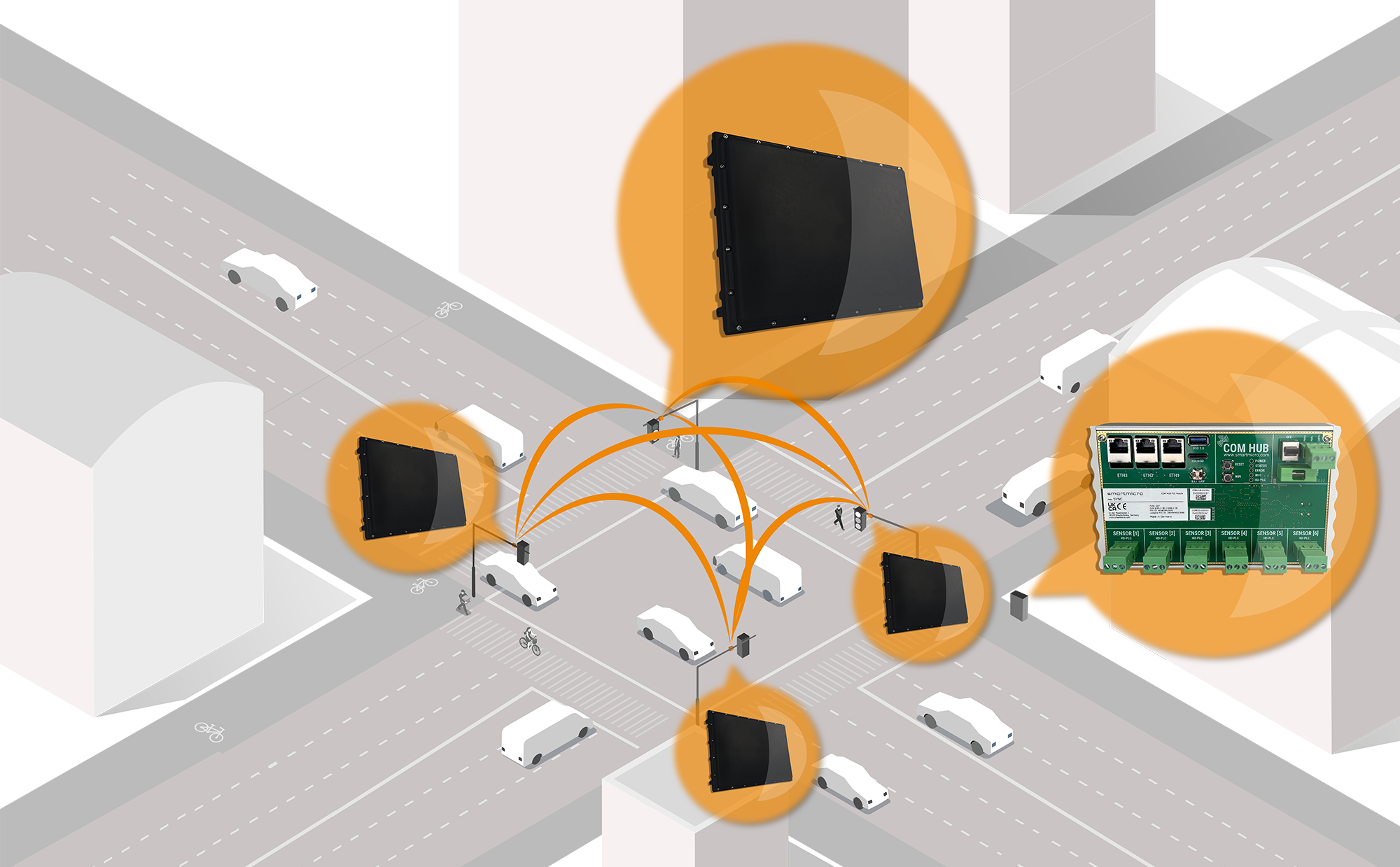

With a set-up of four sensors, all approaches of an intersection are covered. While the detection software runs on each sensor, the tracking software running on COM HUB uses the data from all four sensors. Application now covers all approaches, including the inner part of the intersection.
- Overlapping fields of view create redundancy
- Handles crossing traffic very well
- No occlusion
Turning Movement Counts
The overlapping fields of view allow Seamless Tracking over the entire intersection. Any object is detected at 200m (656ft) distance and will be tracked seamlessly over the full intersection, while its object (tracking) ID remains the same. This gives valuable information on travel paths of all traffic participants, including precise turning movement counts.
Reliable turning movement counts can be used to improve the efficiency of the intersection in the long-term, improve the traffic flow andincrease the safety of all road users, especially Vulnerable Road Users (VRUs).
The data of all sensors processed into one single object list in real-time additionally delivers precise data for V2X applications, especially for autonomous vehicles (AV).
Key advantages
01
Full Coverage
With the use of four sensors, Seamless Tracking actively covers the entire intersection, including turning vehicles. Full coverage, less occlusion, good redundancy.
02
Improved Detection
Super Resolution AI Tracking increases detection & classification accuracy. It enables excellent counting performance across many lanes, including turning counts.
03
Single Object List
All data and objects are consolidated into a single object list available in real-time for Automated Vehicles (AV).
04
Long range
Any object within a 200m distance is successfully detected and seamlessly tracked over the entire intersection. The object is dropped only after it leaves a 200m radius.
Super Resolution AI Tracking - Seamless Tracking is a unique feature patented and offered only by smartmicro
System Setup with COM HUB

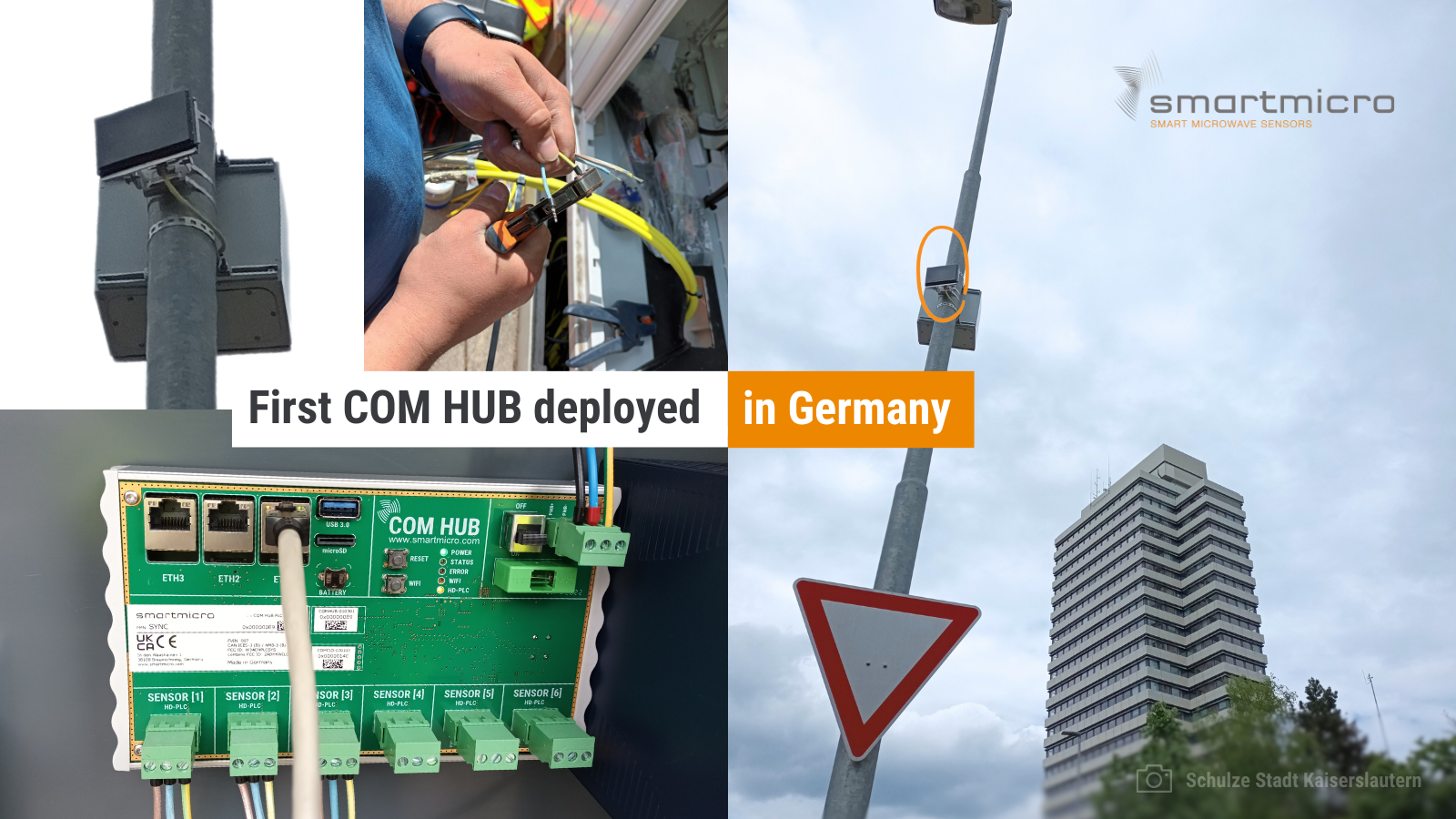

smartmicro’s COM HUB edge device acts as a centralized hub connecting and synchronizing up to 4 sensors. The device enables interference-free operation of all sensors by ensuring that each radar device transmits its signals during dedicated time slots.
On customer side
- Interface to traffic controller: SDLC, ETH, RS485, Relays
- Interface to cloud: MQTT, Rest API
- Over-the-air software updates
- Compatible with V2X applications
- WiFi / Traffic WEB UI configuration
On the sensor side
- Very precise synchronization and interference-free operation of all sensors
- Simple 2-wire HD PLC link with up to 300m cables providing power and Ethernet connectivity to all sensors
COMPATIBILITY
TRUGRD Products
24GHz sensors TRUGRD and TRUGRD Stream from the Premium Line
TOPGRD
Upcoming 77GHz sensor from the Compact Line
SDLC Module
Collecting 64 outputs generated by sensors and transferring them to the controller via SDLC protocol.

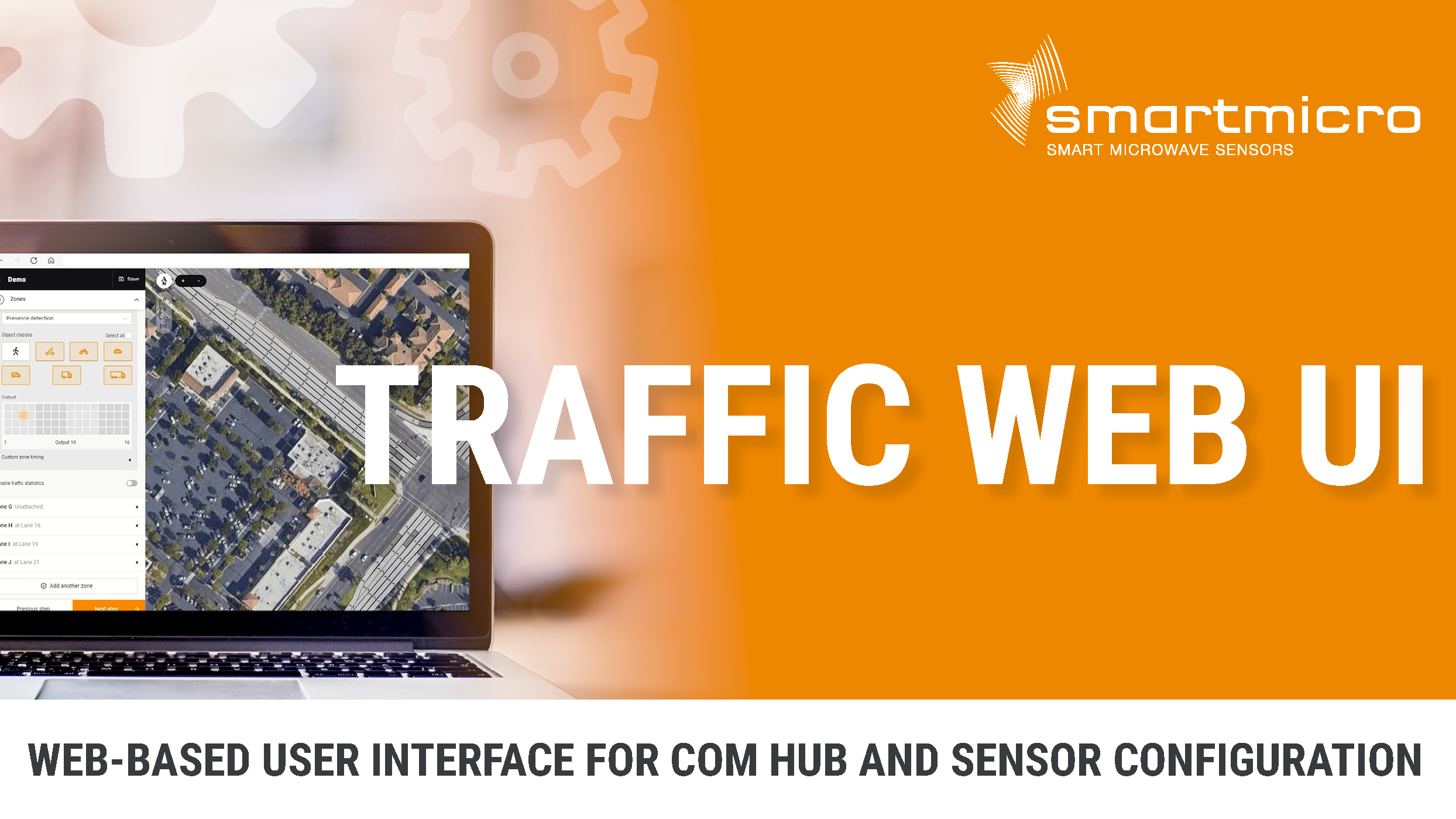

Traffic Web UI
Simple and intuitive set-up and configuration software.
Get Started with the COM HUB Devices Today
Ready to modernize your traffic detection system? The COM HUB Devices offers a seamless, flexible, and scalable solution to improve your traffic management infrastructure. With easy installation, robust connectivity, and advanced features, it’s the perfect choice for forward-thinking traffic engineers and system integrators.
