Verification of Radar Sensor Performance
Simulate moving targets, adjust speeds and customize RCS

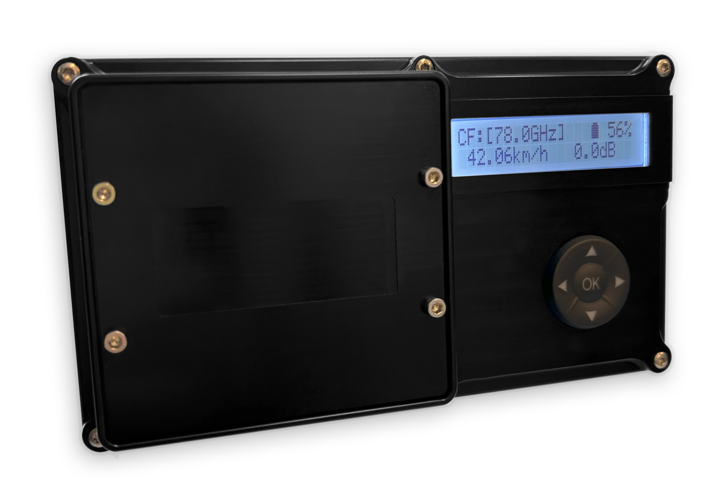

The Handheld Target Simulator is an essential tool for testing radar sensors, specifically designed for the 76 GHz to 81 GHz frequency range. Its compact design, wireless operations, and programmability greatly enhance the applications of a radar target simulator. Whether in the field or the lab, this portable device allows you to simulate close-to-real-world radar conditions, ensuring that your sensors are working at peak performance. It simulates the speed of a moving target, making it essential for End-of-Line Testing, Sensor Verification, In-Field Calibration, and Sensor Alignment. This device is perfect for everything from sensor calibration and alignment to annual inspections and development testing.
Why Choose the Handheld Target Simulator
- Accurate Simulation: Provides Doppler shifts and adjustable target speeds for more accurate radar sensor testing.
- Versatility: Ideal for sensor alignment, End-of-Line Testing, and in-field calibration
- Portability: Compact and rugged, perfect for both lab and outdoor use.
- Ease of Use: Intuitive interface for quick adjustments, minimizing setup time and maximizing efficiency.
key features of the
Handheld Target Simulator
01
Flexible Operation Options
Whether you want to use it as a battery-operated, portable device for quick and easy configurations in the field or as a connected device in the laboratory or in production environments for more complex configurations – The Handheld Target Simulator is designed for flexibility. It adapts to your workflow, making it an indispensable tool for all your radar sensor testing needs.
02
Adjust a Wide Speed Range
The speed of the simulated target can be programmed. With the ability to adjust speeds from -320 km/h to +320 km/h, you can create test scenarios that mimic the wide variety of situations radar sensors encounter, from stationary targets to high-speed moving objects.
03
Customizable Radar Cross Section (RCS)
Radar systems respond differently to objects depending on their size, shape, and composition. The Handheld Target Simulator allows you to adjust the Radar Cross Section (RCS) to simulate various target reflections, from small pedestrian-sized objects to large vehicles or complex reflective surfaces. This feature makes it a powerful tool for testing the full range of radar sensor capabilities.
04
Programmable Presets
Streamline your testing process with programmable presets. Customize and save specific test scenarios, so you can quickly load them for future use, saving you time and effort. This feature is perfect for repeated tests or when you need to perform the same set of tests for different sensor configurations.
05
Battery-powered for On-the-Go Testing
Powered by a rechargeable battery, this device is perfect for on-the-go testing. This gives you the opportunity to test radar sensors in places that were previously inaccessible to target simulators.
06
User-Friendly Interface
Adjusting parameters is easy with the intuitive display and user interface. Easily set the desired speed, RCS, and Doppler shift. The Interface Design allows for precise adjustments, making it user-friendly for both beginners and experienced engineers.
07
Compact, Rugged, and Built for the Field
Designed to be durable and portable, the Handheld Target Simulator is rugged enough for in field testing. With its lightweight, compact build, you can easily take it to any location – whether in a workshop, lab, or out in the field. You are also able to mount it to tripods for hands-free operations.
08
Calibration of Doppler-Shift/ Speed
The Handheld Target Simulator can be calibrated in an accredited laboratory to ensure the traceability of your speed measurements. This provides reliable proof of sensor performance. There are calibration signal outputs that provide direct access to the internal system clock and Doppler Signal for effortless speed calibration at low frequencies, avoiding complex measurements at radar frequencies from 76 GHz to 81 GHz.
Calibration Service
smartmicro can get your Handheld Target Simulator calibrated before delivery. Recalibration can be done through us or by a certified calibration laboratory of your choice.
impressive advantages
Portable and Field-Ready
The compact design and rugged construction make the Handheld Target Simulator perfect for testing in any environment. Whether you're performing a quick sensor alignment in the field or conducting detailed tests in the lab, this device can handle it all. Its lightweight construction ensures it’s easy to carry and deploy, while the rugged case ensures it can withstand the wear and tear of field use.
Achieve High-Quality, Close Realistic Radar Sensor Testing
One of the key advantages of the Handheld Target Simulator is its ability to simulate close-to-real-world testing conditions. The Handheld Target Simulator mimics the speed of a moving target. The Doppler Generator ensures that the targets stand out clearly against the non-moving background, by simulating target speed. You can replicate actual testing scenarios, ensuring that your sensor performs optimally in the field.
User-Friendly Interface for Efficient Testing
With an intuitive user interface and clear display, the simulator is designed to make radar testing simpler. Set up and adjustments can be done quickly and easily, allowing for seamless integration into your existing workflow. No more complex setups or lengthy training times – this device is built for engineers who want to focus on results, not on understanding complicated tools.
Where to use?
APPLICATIONS OF THE HANDHELD TARGET SIMULATOR
Field Testing and Functionality Validation
For radar sensors in real-world applications, it’s important to test their performance in the field. The Handheld Target Simulator provides an accurate and efficient way to perform these tests. Whether you’re testing for collision avoidance, adaptive cruise control, or any other application, this tool ensures your radar sensor is working correctly in close-to-real-world conditions.
Sensor Alignment and Installation
When installing radar sensors on vehicles or other equipment, proper alignment is crucial for accurate performance. The Handheld Target Simulator allows you to easily align sensors by simulating an easily recognizable/visible target in your desired position. This ensures that your radar sensors are positioned correctly, improving overall sensor accuracy and performance.
Sensor Development and Testing
Developing new radar sensors? The Handheld Target Simulator is a perfect companion for sensor development, allowing you to test your sensors under a wide range of conditions, including varying speeds and RCS. Ensure that your sensors perform well not only in ideal conditions but also in the challenging scenarios they will face.
What Is a Doppler Generator and Why Is It Important?
The Doppler generator is an essential feature of the Handheld Target Simulator. It works by simulating the frequency shift that occurs when a radar sensor detects a moving object. This frequency shift, known as the Doppler effect, is critical for radar sensors in applications such as collision avoidance, adaptive cruise control, and traffic monitoring. The speed of an object can be determined via the frequency shift caused by the Doppler effect. Unlike static target simulators, which only provide reflections from stationary objects, the Doppler generator replicates the speed of moving targets, making it much more accurate for testing sensor performance.
Testing radar sensors simulating the speed of moving targets ensures that your system can properly identify and track objects in motion, a critical capability for applications like autonomous driving. The Doppler generator mimics how radar sensors react to dynamic changes in speed, allowing you to test a wider range of sensor responses. This can significantly improve the reliability and accuracy of the sensor in real-world situations.
Take Your Radar Sensor Testing to the Next Level
The Handheld Target Simulator is an indispensable tool for anyone working with radar sensors. Its ability to simulate the speed of moving targets, to adjust the speed, and to customize RCS makes it an effective testing tool – and it’s portable! Whether you're conducting routine inspections, aligning sensors, or testing new sensor designs, this device ensures that your sensors are always up to the task.
Contact Us Today for more information
Discover the difference the Handheld Target Simulator can make for your radar sensor testing. Get in touch for more information!
